Hood

Opening the hood

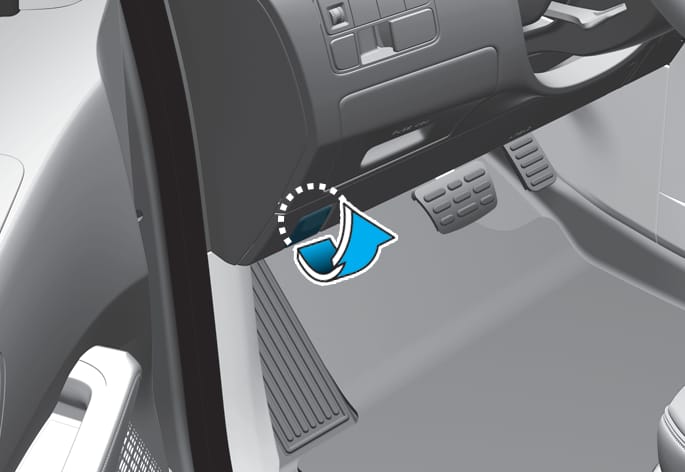

OUS4051063

  1. Park the vehicle and set the parking brake.

  2. Pull the release lever to unlatch the hood. The hood should pop open slightly.

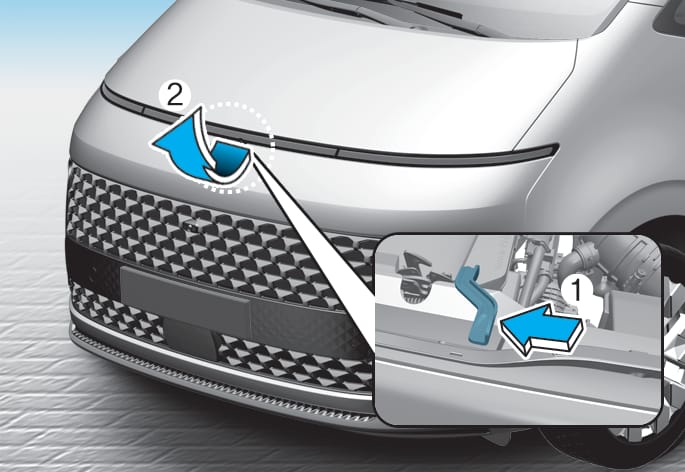

    OUS4051064

  3. Go to the front of the vehicle, raise the hood slightly, push up the secondary hood release lever (1) inside of the hood center and lift the hood (2).

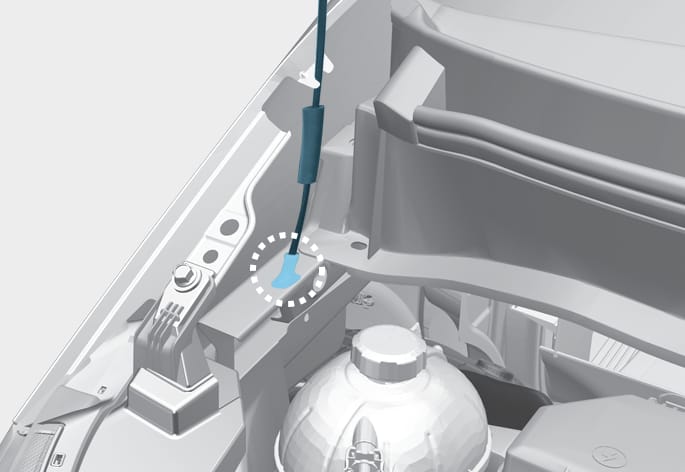

    OUS4051065

  4. Pull out the stay rod.

  5. Hold the hood opened with the stay rod.

  • Grasp the stay rod in the area wrapped in rubber. The rubber will help prevent you from being burned by hot metal when the engine is hot.

  • The stay rod must be inserted completely into the hole provided whenever you inspect the engine compartment. This will prevent the hood from falling and possibly injuring you.

Closing the hood

  1. Before closing the hood, check in and around the engine compartment to ensure the following:

    • Any tools or other loose objects are removed from the engine room area or hood opening area

    • All glove, rags, or other combustible material is removed from the engine compartment

    • All filler caps are tightly and correctly installed

  2. Return the support rod to its clip to prevent it from rattling.

  3. Lower the hood until it is about 30 cm (12 in) above the closed position and let it drop. Make sure that it locks into place.

  4. Check that the hood has engaged properly. If the hood can be raised slightly, it is not properly engaged. Open it again and close it with a little more force.

  • Before closing the hood, ensure all obstructions are removed from around the hood opening.

  • Always double check to be sure that the hood is firmly latched before driving away. Check there is no hood open warning light or message displayed on the instrument cluster. The chime will sound if you drive with the hood opened.

    Driving with the hood opened may cause a total loss of visibility, which might result in an accident.

  • Do not move the vehicle with the hood in the raised position, as vision is obstructed, which might result in an accident, and the hood could fall or be damaged.
