Filter replacement

Front cabin air filter

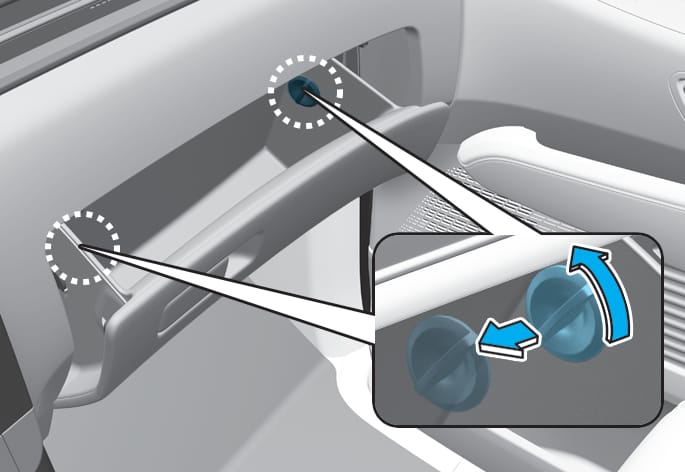

OUS4091031

  1. Remove the stoppers on both sides to allow the glove box to hang freely on the hinges.

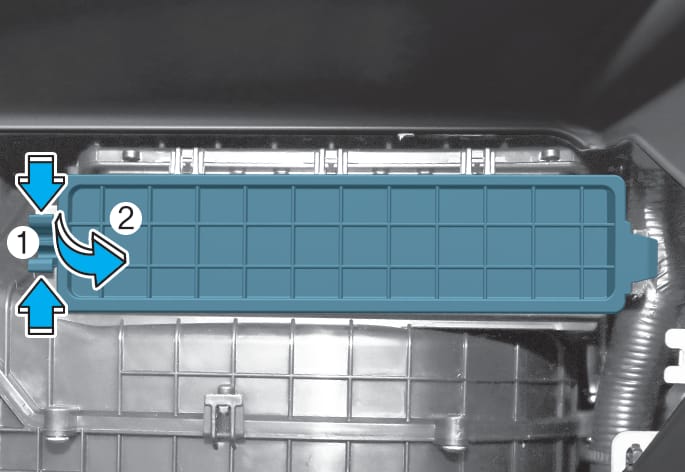

    OUS4091063L

  2. Press and hold the lock (1) on the left side of the cover.

  3. Pull out (2) the cover.

  4. Replace the cabin air filter.

  5. Reassemble in the reverse order of disassembly.

Rear climate control air filter

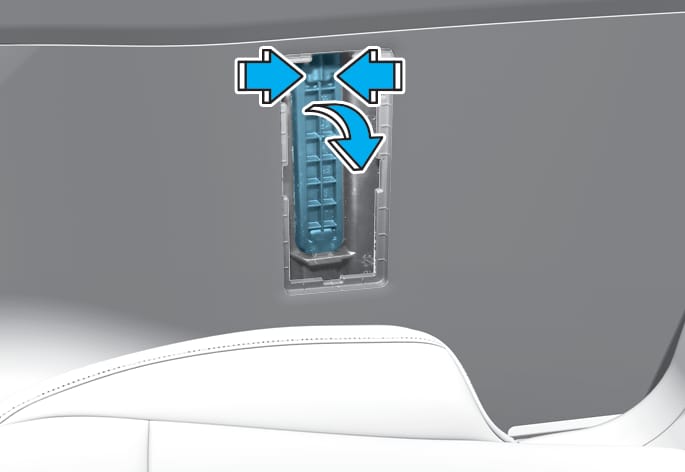

OUS4091034

  1. Remove the service cover using a '-' screwdriver.

  2. Remove the cover by pressing and pulling the right side of the air filter cover for the air conditioner.

  3. Replace the cabin air filter.

  4. Reassemble in the reverse order of disassembly.

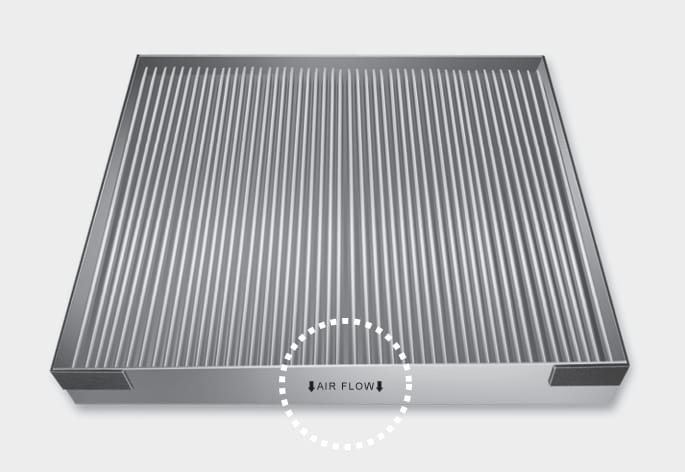

OHI078055

Install a new cabin air filter in the correct direction with the arrow symbol (↓) facing downwards, to prevent noise and reduce effectiveness.
