Interior light replacement

Map lamp, room lamp, and sunvisor lamp (Bulb type)

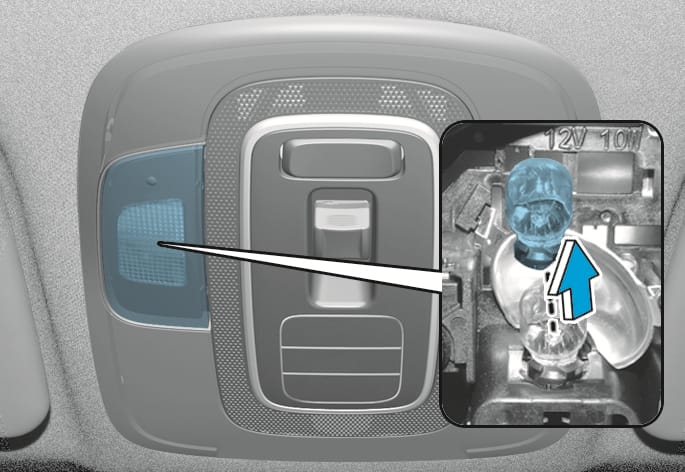

Map lamp

OCN7H083028N

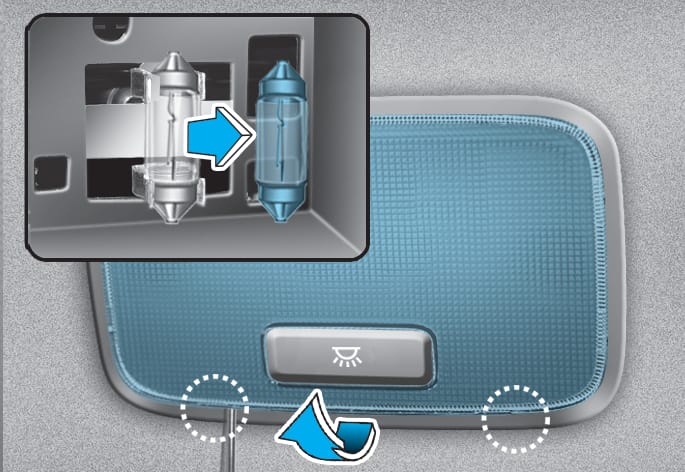

Room lamp

OCN7080034

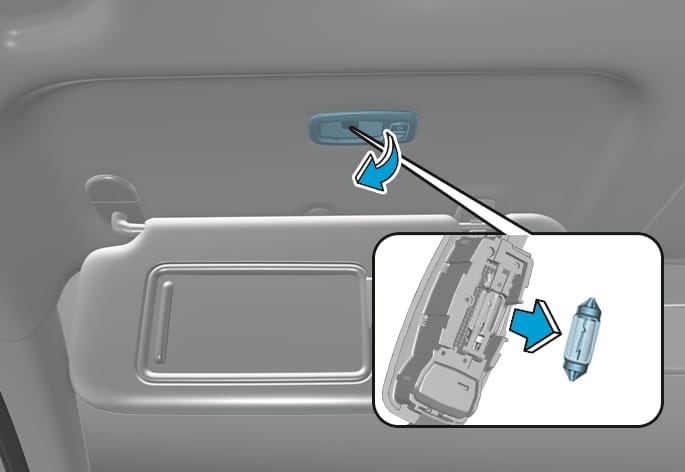

Sunvisor lamp

OCN7H053048N

  1. Turn off the engine.

  2. Using a flat-blade screwdriver, gently pry the lens or assembly from the interior lamp housing.

  3. Remove the bulb by pulling it straight out.

  4. Install a new bulb in the socket.

  5. Align the lens tabs with the interior lamp housing notches and snap the lens into place.

Prior to working on the Interior Lights, ensure that the "OFF" button is depressed to avoid burning your fingers or receiving an electric shock.

Be careful not to damage the cover, tab, and plastic housing.

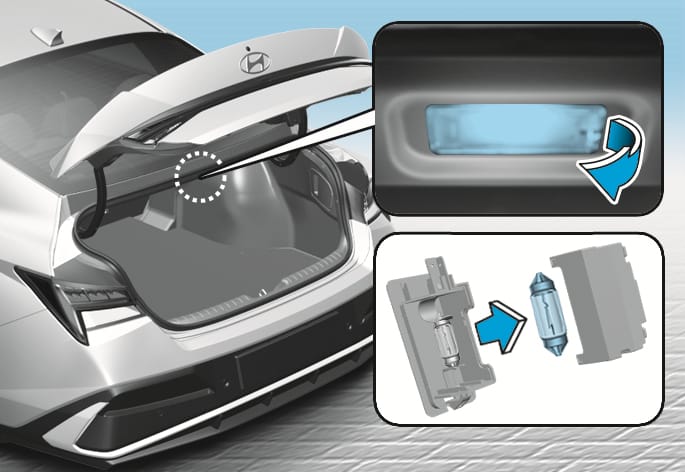

Trunk room lamp (bulb type)

OCN7H053047N

  1. Using a flat-blade screwdriver gently pry the assembly from the lamp housing.

  2. Remove the lamp cover, then pull the bulb straight out it.

  3. Install a new bulb.

  4. Reinstall in the reverse order.

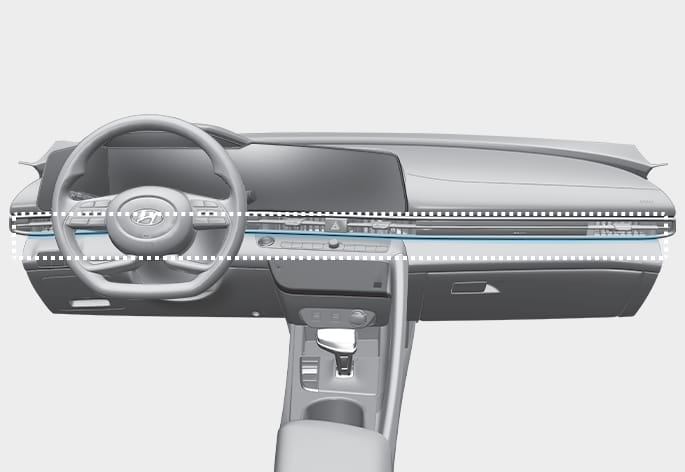

Mood lamp (LED type)

OCN7C052041

If the LED light does not operate, contact an authorized HYUNDAI dealer for replacement.

The LED light cannot be replaced as a single unit. A skilled technician should check or repair the LED light, for it may damage related parts of the vehicle.
