Cargo area cover

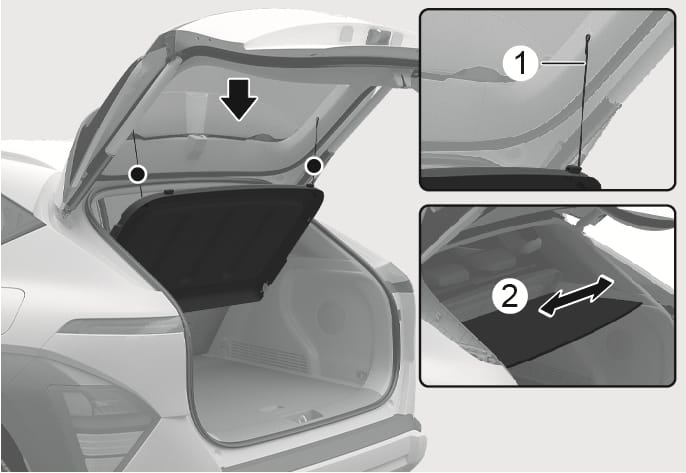

2C_CargoShelf

Use the cargo area cover to hide items stored in the cargo area.

  • If the cargo area cover is connected to the liftgate, the cover lifts with the liftgate when opening the liftgate.

  • If you do not want the cargo area cover to lift with the liftgate, disconnect the strap (1) from the strap holder of the liftgate.

Removing cargo area cover

To remove the cargo area cover:

  1. Disconnect the strap (1) from the strap holder of the liftgate.

  2. Lift the cover diagonally and pull it out (2).

To reinstall, follow the reverse order.

  • When the cargo area cover is removed, you can secure the cover to the rear seatback not to distract you while driving.

  • Since the cargo area cover also lifts when opening the liftgate, move the items placed on top of the cover to a safe place so they do not fall.

  • Do not put excessive pressure or weight on the cargo area cover. The cargo area cover may be damaged.

Increasing cargo area volume

To increase cargo area volume:

  1. Open the liftgate and remove the cover according to "Removing cargo area cover".

  2. Push the cargo area cover in to reach the lower fixing part (A).

    • Be careful not to get the cover caught in the cargo.

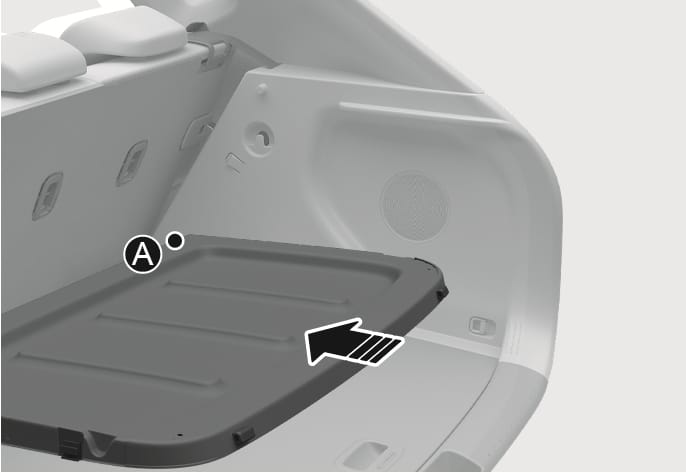

    2C_CargoShelf_Volume1

  3. Insert the cargo area cover to the lower fixing part (A) on both sides.

  4. Lift the rear part of the cargo area cover and secure it with the stopper (B).

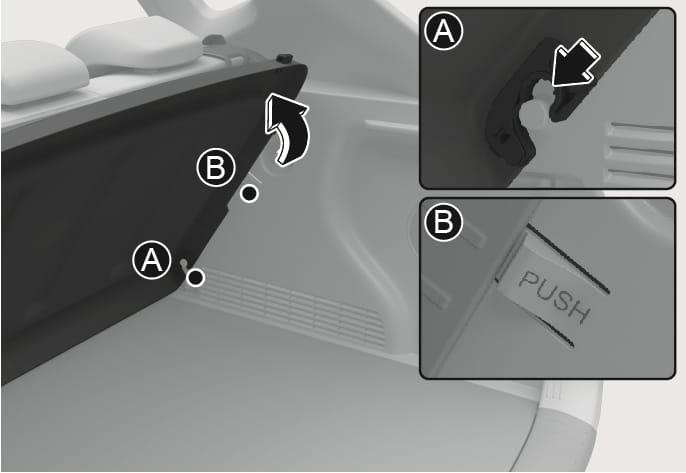

    2C_CargoShelf_Volume2

    • To release the cargo area cover, press the stopper (B), lower the cover, and pull out the cover diagonally.

When securing cover, be careful not to get the cover caught on the upper fixing part. The cargo area cover may be damaged.
