This message appears if you open the driver’s door when the vehicle is in P (Park) and the Engine Start/Stop button in the ON or START position.

Turn the engine off before leaving the vehicle.

This message appears if the Engine Start/Stop button is pressed to the OFF position without the vehicle in the P (Park) position.

If this occurs, the Engine Start/Stop button goes to the ACC position.

This message appears if you try to turn off the vehicle with the vehicle in N (Neutral).

To turn off the vehicle:

1. Press the Engine Start/Stop button. The button goes to the ON position.

2. Press the P button to shift to P (Park).

3. Press the Engine Start/Stop button again, then the vehicle turns off.

This message appears when the Engine Start/Stop button is pressed to the OFF position, indicating the internal battery of the smart key is low. Replace the smart key battery.

This message appears if the Engine Start/Stop button is pressed repeatedly without pressing the brake pedal.

Start the vehicle by pressing the brake pedal and then pressing the Engine Start/Stop button.

This message appears if the smart key is not in the vehicle when you have left the vehicle with the Engine Start/Stop button in the ON or START position.

Always turn off the engine before leaving your vehicle.

This message appears if the smart key is not detected when you press the Engine Start/Stop button.

If you cannot start the vehicle after the Engine Start/Stop button is pressed, attempt to start the engine by pressing the Engine Start/Stop button again.

If the warning message appears each time you press the Engine Start/Stop button, we recommend that your vehicle be inspected by an authorised HYUNDAI dealer.

This message appears if the smart key is not detected when you press the Engine Start/Stop button after accessing with the smart key.

This message appears if the brake switch fuse is disconnected.

You need to replace the fuse with a new one before starting the engine.

If that is not possible, you can start the engine by pressing the Engine Start/Stop button for 10 seconds in the ACC position.

This message appears if you try to start the engine in any other position except P (Park) or N (Neutral).

This message appears if the vehicle battery voltage is low or if a current draw is detected that could drain the vehicle battery.

Do not connect any external electronic devices to the battery system or battery discharge may occur.

If this message appears and there are no other external electronic devices connected to the vehicle, we recommend that your vehicle be inspected by an authorised HYUNDAI dealer.

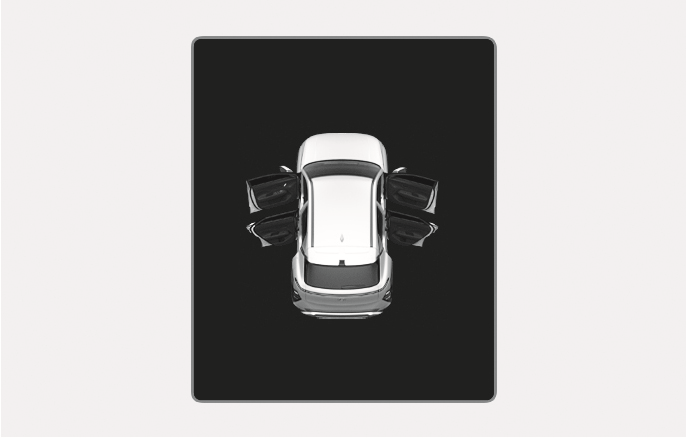

2C_DoorOpenWarning

This warning appears if any door or bonnet or tailgate is left open. The warning indicates which door is open on the instrument cluster display.

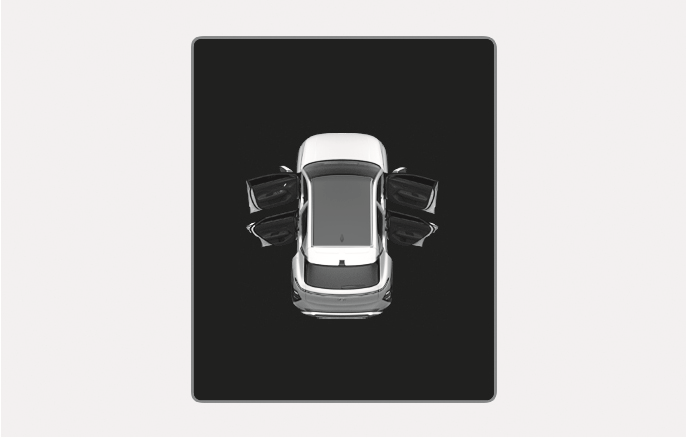

2C_SunroofOpenWarning

This warning appears if you turn off the engine when the sunroof is open.

Close the sunroof securely before leaving your vehicle.

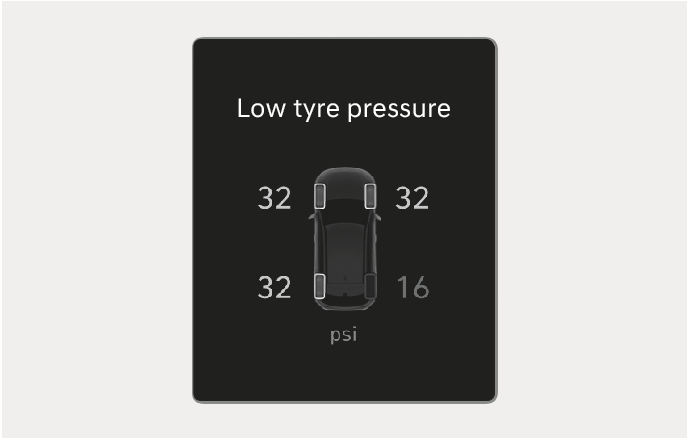

2C_TireLowPressureWarning

This warning message appears if the tyre pressure is low. The corresponding tyre on the vehicle illuminates.

For more information, refer to the “Tyre pressure monitoring system (TPMS)” section in chapter 8.

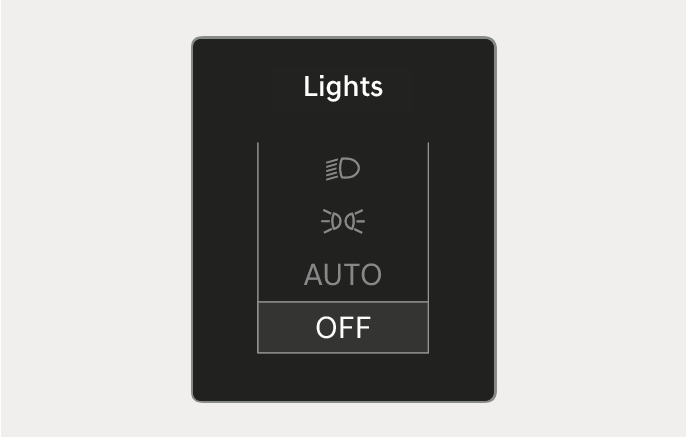

2C_LightMode

This indicator displays which exterior light is selected using the lighting control.

You can activate or deactivate Wiper/Lights display function from the Settings menu in the infotainment system.

Select: Settings > Cluster > Content selection> Wiper/Lights display

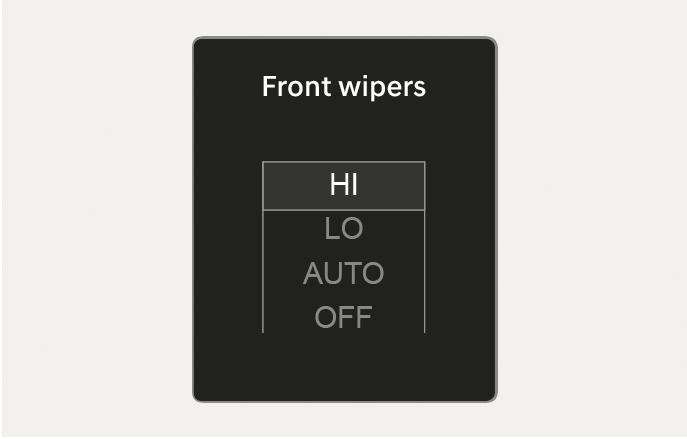

Front

2C_FrontWiperMode

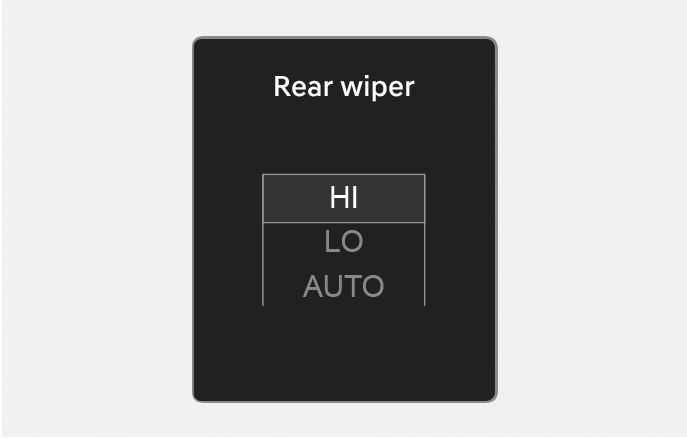

Rear

2C_RearWiperMode

This indicator displays which wiper speed is selected using the wiper control.

You can activate or deactivate Wiper/Lights display function from the Settings menu in the infotainment system.

Select: Settings > Cluster > Wiper/Lights display

This message appears if the washer fluid level in the reservoir is nearly empty.

Have the washer fluid reservoir refilled.

This message appears if the fuel tank is almost out of fuel.

When this message appears, the low fuel level warning light in the instrument cluster will come on.

Refuel as soon as possible.

This warning message appears when the engine oil level should be checked.

Slowly pour the recommended oil into a funnel.

Use only the specified engine oil. For more information, refer to the “Recommended lubricants and capacities” section in chapter 2.

Do not overfill the engine oil. Make sure the oil level is not above F (Full) mark on the dipstick.

This message appears when the engine coolant temperature is above about 120°C (248°F). The engine is overheated and may be damaged.

If your vehicle is overheated, refer to the “If the engine overheats” section in chapter 8.

This message appears if there is a problem with the haptic steering wheel system. We recommend that your vehicle be inspected by an authorised HYUNDAI dealer.

This message appears if the turn signal lights are not operating properly.

Replace the burned out bulb with a new one of the same wattage rating.

This message appears if there is a problem with the LED headlamps. We recommend that your vehicle be inspected by an authorised HYUNDAI dealer.

This warning message appears in the following situations:

• There is a malfunction with the actuator flap.

• There is a malfunction with the actuator air flap controller.

• The air flap does not open.

When all of the above conditions are fixed, the warning disappears.

This message appears when the vehicle is ready to be driven.

This message appears when the brake performance is low or the regenerative brake does not work properly due to a failure in the brake system.

If this occurs, it may take longer for the brake pedal to operate and the braking distance may become longer.

This message appears when a failure occurs in the brake system.

If this occurs, park the vehicle in a safe location and we recommend that you tow your vehicle to the nearest authorised HYUNDAI dealer and have the vehicle inspected.

This message appears when there is a problem with the hybrid system. Refrain from driving when the warning message appears.

If this occurs, we recommend that your vehicle be inspected by an authorised HYUNDAI dealer.

This message appears when there is a problem with the hybrid system. The ¢ indicator will blink and a warning chime will sound until the problem is solved. Refrain from driving when the warning message appears.

If this occurs, we recommend that your vehicle be inspected by an authorised HYUNDAI dealer.

This message appears when the hybrid battery power (SOC) level is low. A warning chime will sound until the problem is solved. Refrain from driving when the warning message appears.

If this occurs, we recommend that your vehicle be inspected by an authorised HYUNDAI dealer.

This message appears when a failure occurs in the power supply system.

If this occurs, park the vehicle in a safe location and we recommend that you tow your vehicle to the nearest authorised HYUNDAI dealer and have the vehicle inspected.

This message appears when there is a problem with the Virtual Engine Sound System (VESS).

In this case, we recommend that your vehicle be inspected by an authorised HYUNDAI dealer.

This message appears when the battery system coolant is nearly empty.

Refill the battery system coolant.

This message appears when the hybrid battery power (SOC) level is low.

If this occurs, park the vehicle in a safe location and wait until the hybrid battery is charged.

This message appears to inform the driver the 12 V battery may be discharged if the Engine Start/Stop button is in ON position (without the ¢ indicator ON).

Set the vehicle to the ready mode (¢ indicator ON) to prevent the 12 V battery from being discharged.

This warning message appears to protect battery and electric vehicle system when an abnormality such as high temperature or overcharge is detected in the 12 V lithium auxiliary battery.

In this case, we recommend that your vehicle be inspected by an authorised HYUNDAI dealer.
