Instrument cluster

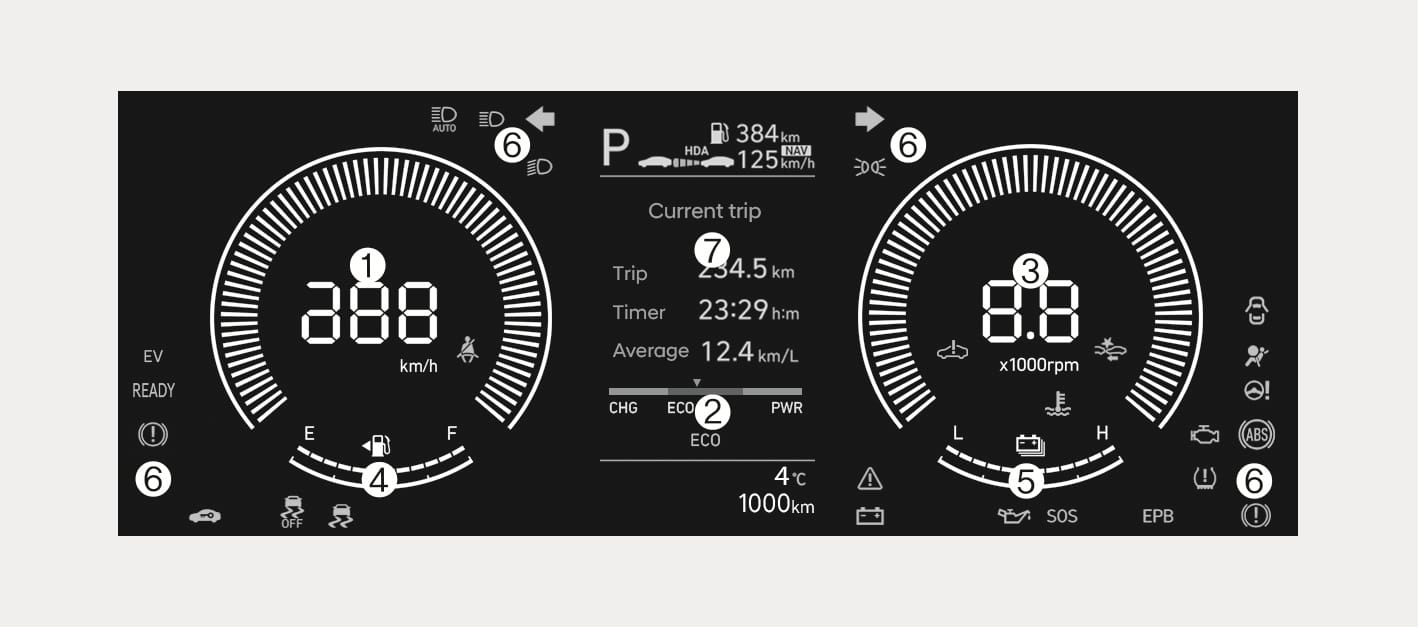

Type A

1C_ClusterOverview

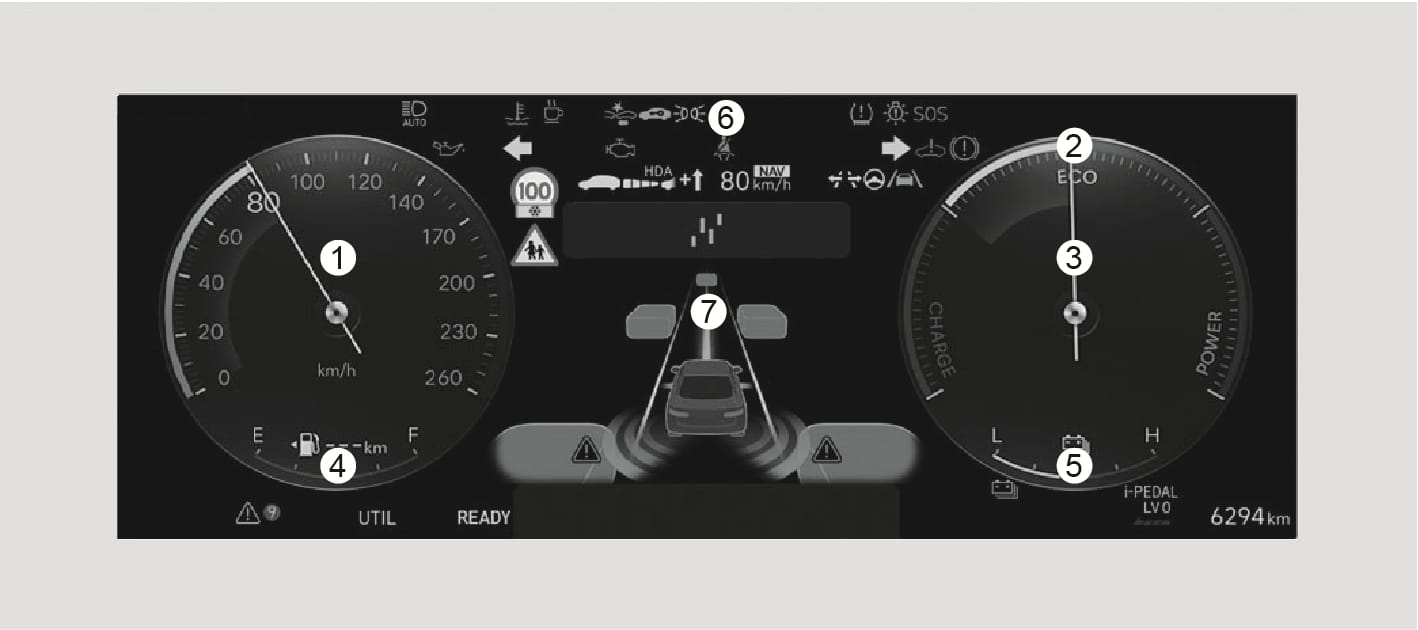

Type B

1C_ClusterOverview_3

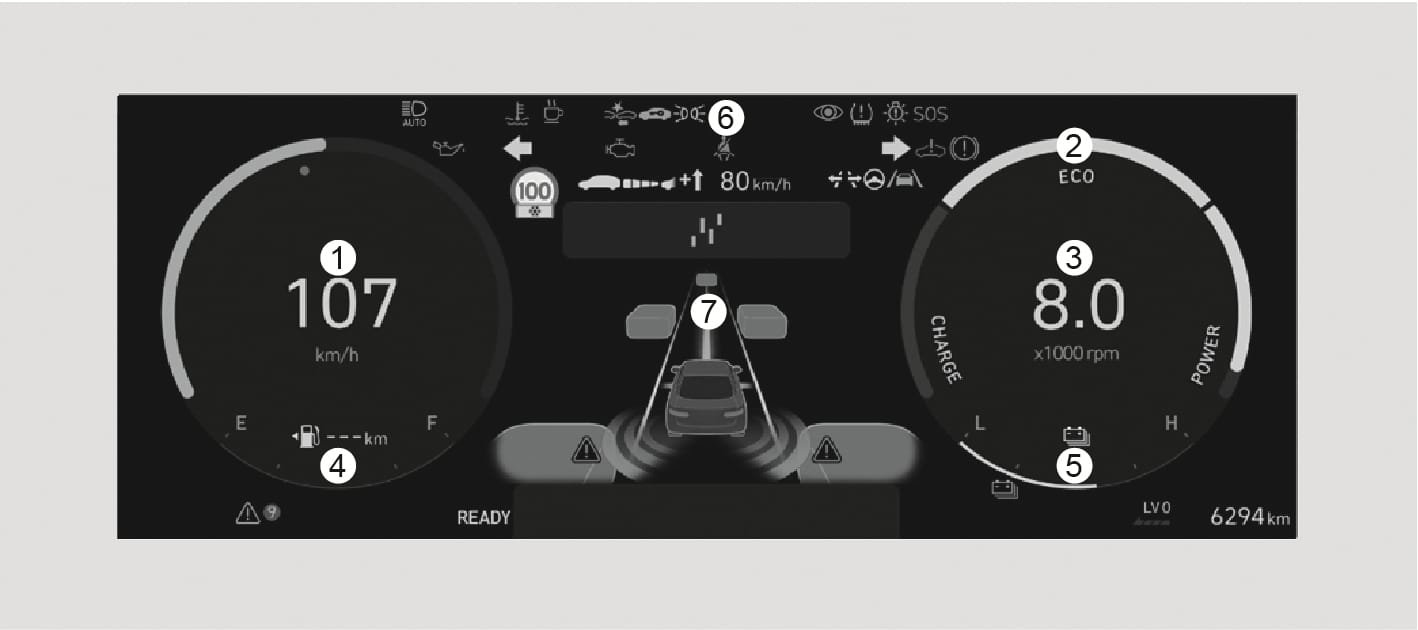

Type C

1C_ClusterOverview_2

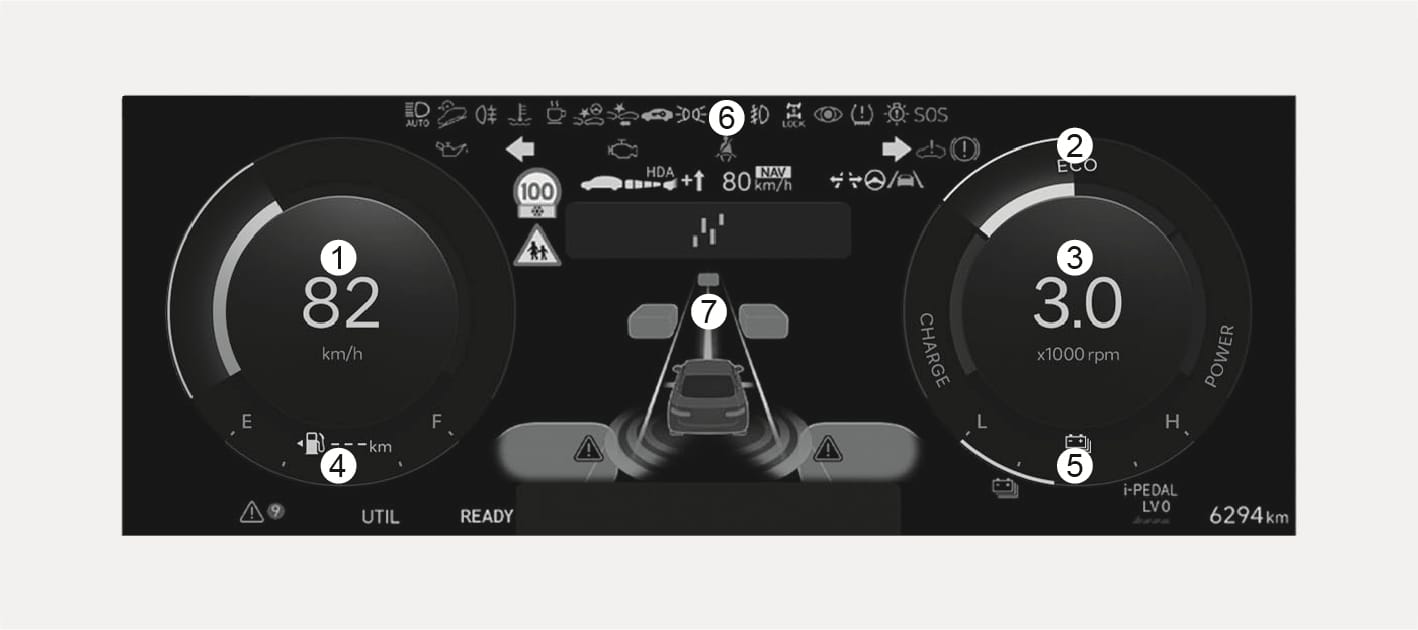

Type D

1C_ClusterOverview_4

The actual Instrument cluster in the vehicle may differ from the image. For more information, refer to the “Gauges and meters” section in this chapter.

  1. Speedometer
  2. Hybrid system gauge
  3. Tachometer
  4. Fuel gauge
  5. Hybrid battery SOC (State of Charge) gauge
  6. Warning and indicator lights
  7. Instrument cluster display
