Lane Keeping Assist malfunction and limitations

Lane Keeping Assist malfunction

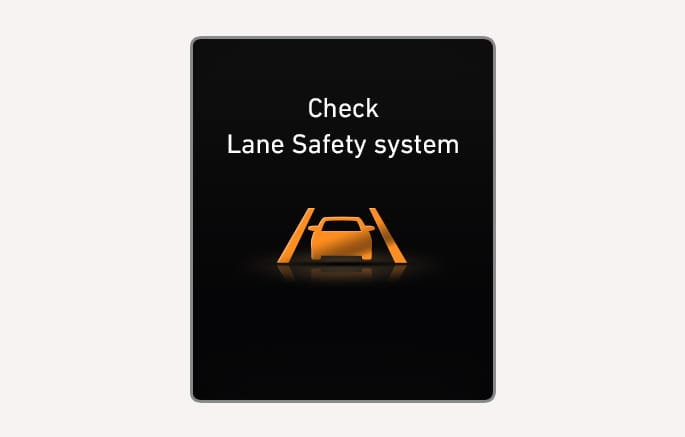

2C_DriverAssistanceMalfunction

When Lane Keeping Assist is not working properly, the "Check Lane Safety system" warning message and yellow Lane Keeping Assist (S) warning light appears on the cluster. If this occurs, we recommend that your vehicle be inspected by an authorized HYUNDAI dealer.

Lane Keeping Assist disabled

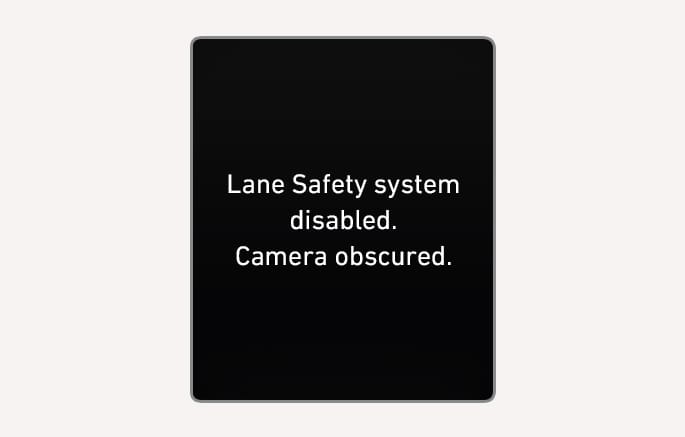

2C_DriverAssistanceLimitedCamera_1

When the front windshield where the front view camera is located, or sensor is covered with foreign material, such as snow or rain, it can reduce the detecting performance and temporarily limit or disable Lane Keeping Assist.

If this occurs, the "Lane Safety system disabled. Camera obscured." warning message and the master (X) warning light or Lane Keeping Assist (S) warning light appears on the instrument cluster.

Lane Keeping Assist operates properly when snow, rain or foreign material is removed.

If Lane Keeping Assist does not operate properly after it is removed, we recommend that your vehicle be inspected by an authorized HYUNDAI dealer.

  • Even though the warning message does not appear on the instrument cluster, Lane Keeping Assist may not properly operate.

  • If the vehicle is turned off and restarted while the camera is blocked or malfunctioned, the condition is maintained. Therefore, Lane Keeping Assist may not operate properly.

Limitations of Lane Keeping Assist

Lane Keeping Assist may not operate properly or may operate unexpectedly under the following circumstances:

  • The lane is contaminated or difficult to detect because:

    • The lane markings (or road edge) are covered with rain, snow, dirt, oil, etc.

    • The color of the lane marking (or road edge) is not distinguishable from the road

    • There are markings (or road edges) on the road near the lane or the markings (or road edges) on the road look similar to the lane markings (or road edge)

    • The lane marking (or road edge) is indistinct or damaged

    • The shadow is on the lane marking (or road edge) by a median strip, trees, guardrail, noise barriers, etc.

  • The lane number increases or decreases, or the lane markings (or road edges) are crossing

  • There are more than two lane markings (or road edges) on the road

  • The lane markings (or road edges) are complicated or a structure substitutes for the lines, such as a construction area

  • There are road markings, such as zigzag lanes, crosswalk markings and road signs

  • The lane suddenly disappears, such as at the intersection

  • The lane (or road width) is very wide or narrow

  • There is a road edge without a lane

  • There is a boundary structure in the roadway, such as a tollgate, sidewalk, curb, etc.

  • The distance to the front vehicle is extremely short or the vehicle in front is covering the lane marking (or road edge)

  • Driving on the left or right side of the median bus lane or on the median bus lane

For more information on the limitations of the front view camera, refer to the "Forward Collision-Avoidance Assist (FCA) (Front view camera only)" section in this chapter.

Take the following precautions when using Lane Keeping Assist:

  • The driver has the responsibility to safely drive and control the vehicle. Do not solely rely on Lane Keeping Assist and drive dangerously.

  • The operation of Lane Keeping Assist can be canceled or not work properly depending on road conditions and surroundings. Always be cautious while driving.

  • Refer to Limitations of Lane Keeping Assist if the lane is not detected properly.

  • If there is a heavy cargo or attachment, turn off Lane Keeping Assist for safety reasons.

  • If the vehicle is driven at high speed, the steering wheel will not be controlled. The driver must always follow the speed limit when using Lane Keeping Assist.

  • If any other system's warning message appears or audible warning is generated, Lane Keeping Assist warning message may not be displayed and audible warning may not be generated.

  • You may not hear the warning sound of Lane Keeping Assist if the surrounding is noisy.

  • If you attach objects to the steering wheel, steering may not be assisted properly.

  • Lane Keeping Assist may not operate for 15 seconds after the vehicle is started, or the front view camera is initialized.

  • Lane Keeping Assist will not operate when:

    • Within a certain period of time after turning on or off the turn signal or hazard warning flasher.

    • The vehicle is not driven in the center of the lane when Lane Keeping Assist is turned on or right after changing a lane.

    • ESC (Electronic Stability Control) or VSM (Vehicle Stability Management) is activated.

    • The vehicle is driven on a sharp curve.

    • Vehicle speed is below or above operating conditions.

    • The vehicle makes sudden lane changes.

    • The vehicle brakes suddenly.

Loading in excess of the maximum load allowance or concentrated loading at one point in the cargo compartment can reduce the vehicle's driving stability, which can in turn reduce the effectiveness of Lane Keeping Assist.
