Using electricity inside the vehicle

You can connect home appliances or electric devices to the power outlet inside the vehicle and use them conveniently.

Do not use an electric heating appliances like electric kettle, toaster, or iron in the vehicle. It may cause a fire and injury.

  1. Press the Start/Stop button to the ON position or activate the Utility mode.

    • For more information about the Utility mode, refer to the "Setting Utility mode" in this chapter.

      2C_V2LPosition

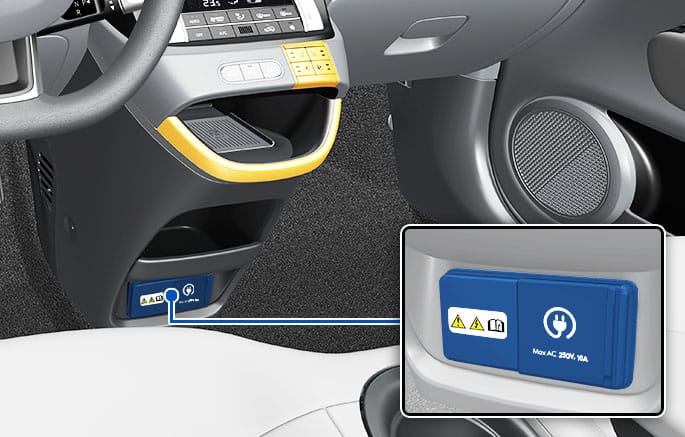

  2. Open the power outlet cover by sliding it to the left, and connect the power plug of the electric device to the power socket.

    • Time remaining until the battery level reaches the set value, and the distance to empty at the set value appears on the instrument cluster or the infotainment system.

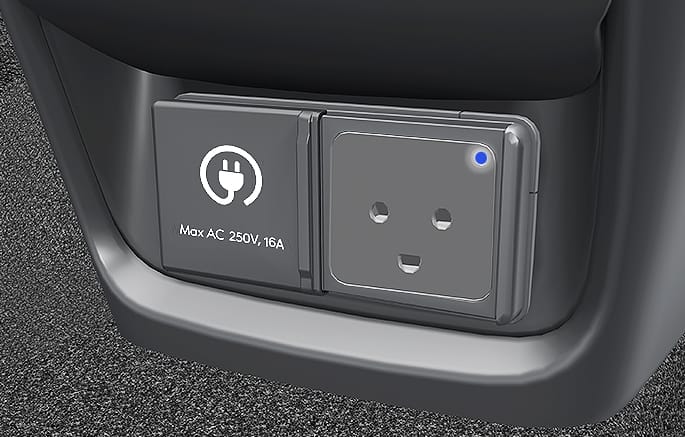

    • The indicator on the power outlet indicates power supply status.

      2C_V2LInsideIndicator

      Indicator status

      Description

      Blue

      Standby

      Red

      No power supply even the power outlet is connected.

      Green

      Normal power supply through the normal connection of the power outlet.

    • V2L discharging mode shuts off if the vehicle is off using indoor V2L on the vehicle state of ON.

    • Opening the charging door or connecting the V2L connector to the charging inlet, the V2L discharging mode shuts off.

    • If you want to use the indoor and outdoor V2L simultaneously, firstly connect the V2L connector to the charging inlet and use the indoor V2L.

    • When the high voltage battery charge level reaches the set discharging limit (%), the operation stops, and a warning message appears on the instrument cluster. If you want V2L operation, set the discharging limit (%) lower than the current battery charge.
