Engine Oil

Checking the engine oil level

Engine oil is used for lubricating, cooling, and operating various hydraulic components in the engine. Engine oil consumption while driving is normal, and it is necessary to check and refill the engine oil regularly. Also, check and refill the oil level within the recommended maintenance schedule to prevent deterioration of oil performance.

Check the engine oil following the below procedure.

  1. Follow all of the oil manufacturer's precautions.

  2. Make sure the vehicle is on the level ground in P (Park) with the parking brake applied.

  3. Turn on the engine and warm the engine up until the coolant temperature reaches a constant normal temperature.

  4. Turn off the engine, remove the oil filler cap and pull the dipstick out. Wait for 15 minutes for the oil to return to the oil pan.

  5. Wipe the dipstick clean and re-insert it fully.

  6. Pull the dipstick out again and check the level. The level should be between F (Full) and L (Low).

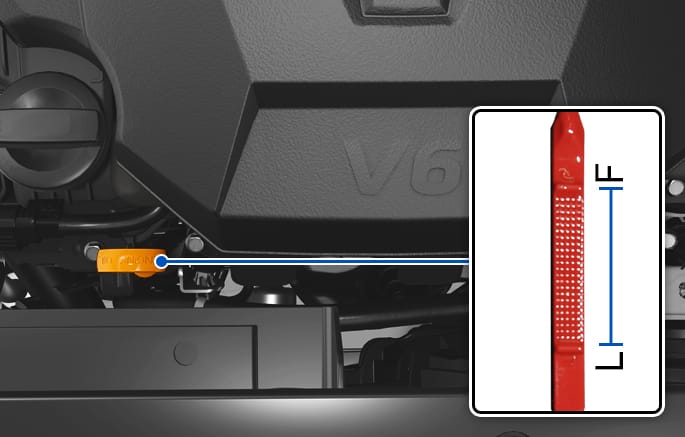

    2C_EngineOilGaugeGasoline

  7. If the oil level is below the L, add enough oil to bring the level to F.

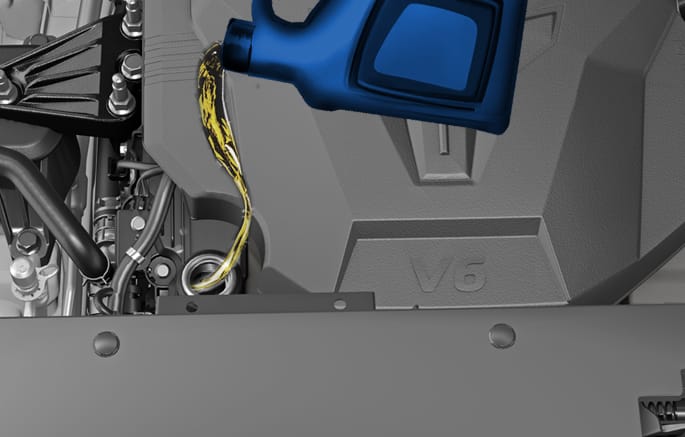

    2C_EngineOilGaugeGasoline_1

Use only the specified engine oil. (For more information, refer to Recommended Lubricants and Capacities.)

To prevent damage to your engine:

  • Do not spill engine oil when adding or changing engine oil. Wipe off spilled oil immediately.

  • The engine oil consumption may increase while you break in the new vehicle, and it should stabilize after driving 4,000 mi. (6,000 km).

  • The engine oil consumption may be affected by driving habits, climate conditions, traffic conditions, and oil quality. Inspect the engine oil level regularly and refill if necessary.

Checking the engine oil and filter

2C_RecommendedEngineOil

  • The engine oil and filter should be changed at the intervals specified in the maintenance schedule. If the vehicle is driven in severe conditions, more frequent oil and filter changes are required.

  • The lubrication, rust prevention, cooling, and cleaning effect of the engine oil will gradually degrade during its use. Have the engine oil and filter changed by an authorized HYUNDAI dealer according to the Oil Life Management System instructions or the maintenance schedule at the beginning of this chapter.

  • The lubrication, rust prevention, cooling, and cleaning effect of the engine oil will gradually degrade during its use. Have the engine oil and filter changed by an authorized HYUNDAI dealer according to the Oil Life Management System instructions or the maintenance schedule in chapter 9 of the complete Owner's Manual.

  • To keep the engine in optimal condition, use the recommended engine oil and filter. If the recommended engine oil and filter are not used, replace them according to the maintenance under severe usage conditions.

  • The purpose of the maintenance schedule for engine oil replacement is to prevent oil deterioration and it is irrelevant to oil consumption. Check and refill engine oil regularly.

Allow the engine to cool before replacing the oil.

Never add any additives to the engine oil. Engine oil additives can change its properties and may cause engine failure.

  • If the oil pressure is low, due to insufficient engine oil, the Engine Oil Pressure H warning light illuminates. The enhanced engine protection system that limits the engine's power, is activated and the Malfunction Indicator Lamp H illuminates. After sufficient engine oil is added, the engine oil pressure warning light and the enhanced engine protection system will turn off after the engine is restarted.

  • The vehicle may be equipped with Oil Life Management System that predicts engine oil life based on the driver's driving history and alerts the driver to change engine oil.

    • If the deterioration of the engine oil increases depending on the driver's driving severity, the remaining oil life alert appears on the cluster display before the normal engine oil replacement interval. Have the engine oil and filter changed by an authorized HYUNDAI dealer.

    • Oil Life Management System works when the recommended engine oil is used. So, if recommended engine oil is not used, replace the engine oil according to the maintenance schedule under severe usage conditions. Also, check the amount of engine oil regularly as this system assumes that the engine oil is being filled normally.

    • Always reset the remaining engine oil life whenever the engine oil is changed. Otherwise, the indication of remaining Oil life in the Oil Life Management System may not be accurate. To reset the Oil Change Reminder, select Setup > Vehicle > Convenience > Oil Change Reminder > Reset from the infotainment system. Then, select Yes when the message 'Has the engine oil changed? Press [Yes] to reset the oil life.' appears on the screen.

    • If there is no alert until the maximum maintenance interval, have your vehicle inspected by an authorized HYUNDAI dealer.
