Manual Adjustment

The front seat can be adjusted by using the levers located underneath the front part of the seat.

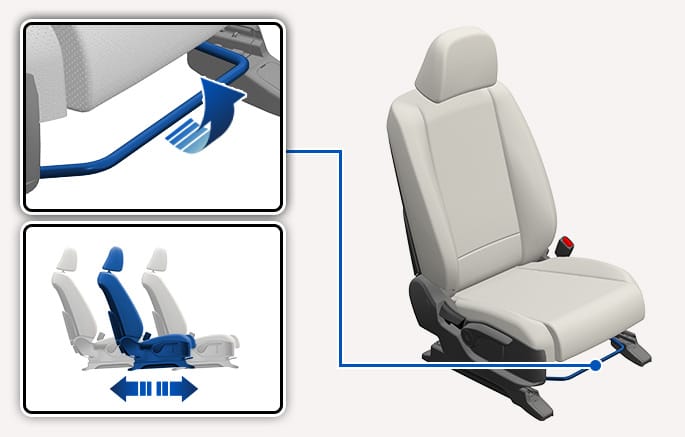

Forward and rearward adjustment

2C_AdjustSeatForwardBackwardmanual

Slide the seat while pulling up and holding the seat slide adjustment lever. Release the lever at the position you desire.

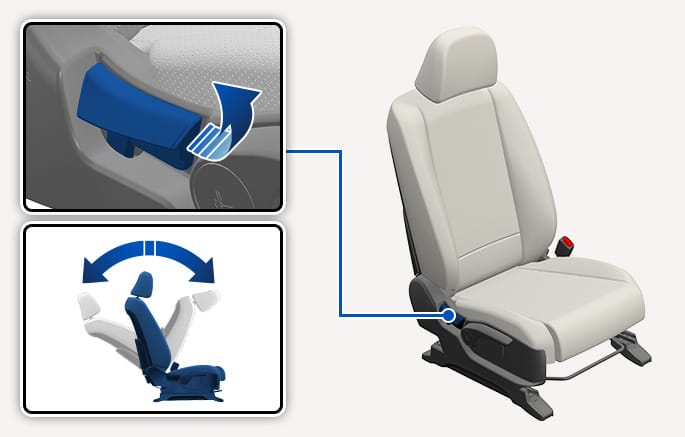

Seatback angle adjustment

2C_AdjustSeatBackmanual

  1. Lean forward slightly and lift up the seatback angle adjustment lever.

  2. Carefully lean back on the seat and adjust the seatback to the position you desire.

  3. Release the lever and make sure the seatback is locked in place. (The lever MUST return to its original position for the seatback to lock.)

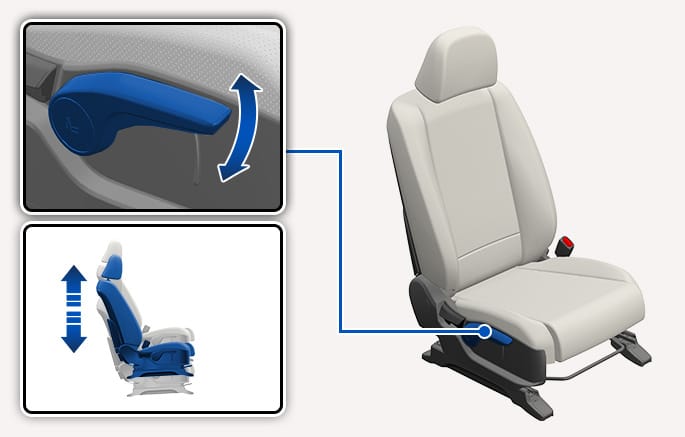

Seat cushion height adjustment

2C_AdjustSeatHeightmanual

  • Push down the lever several times to lower the seat cushion.

  • Pull up the lever several times to raise the seat cushion.

Lumbar support

For more information, refer to Lumbar support .
