Instrument cluster

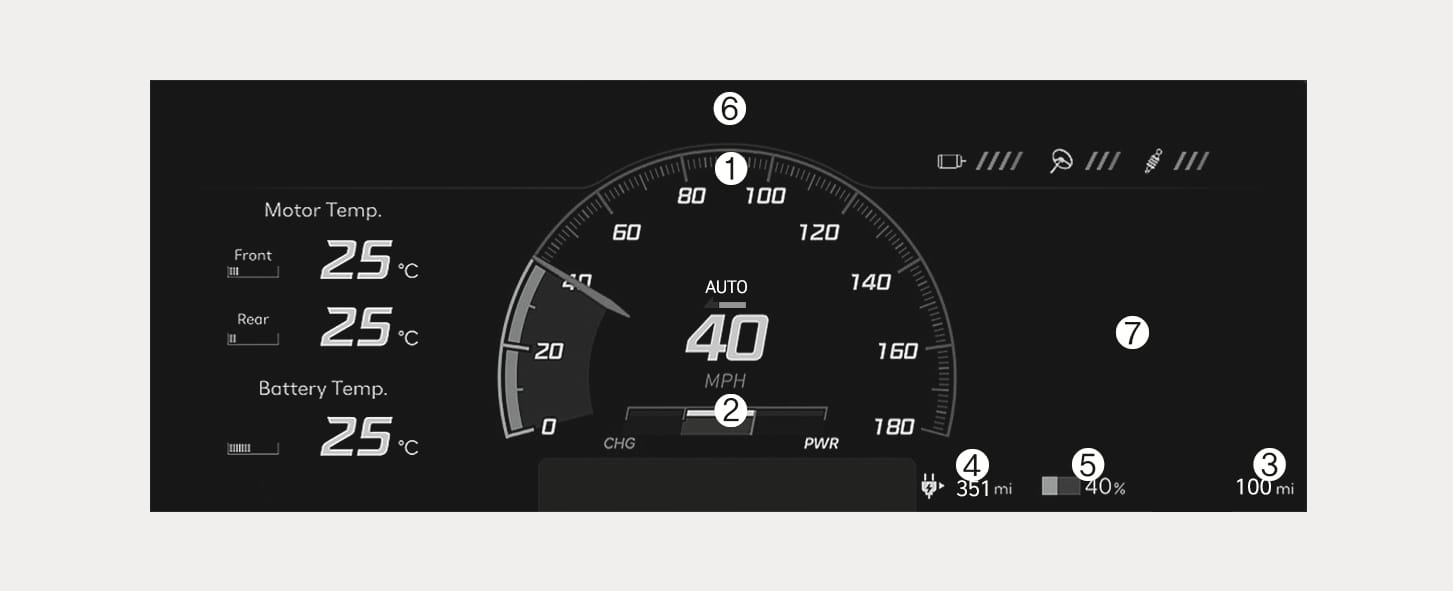

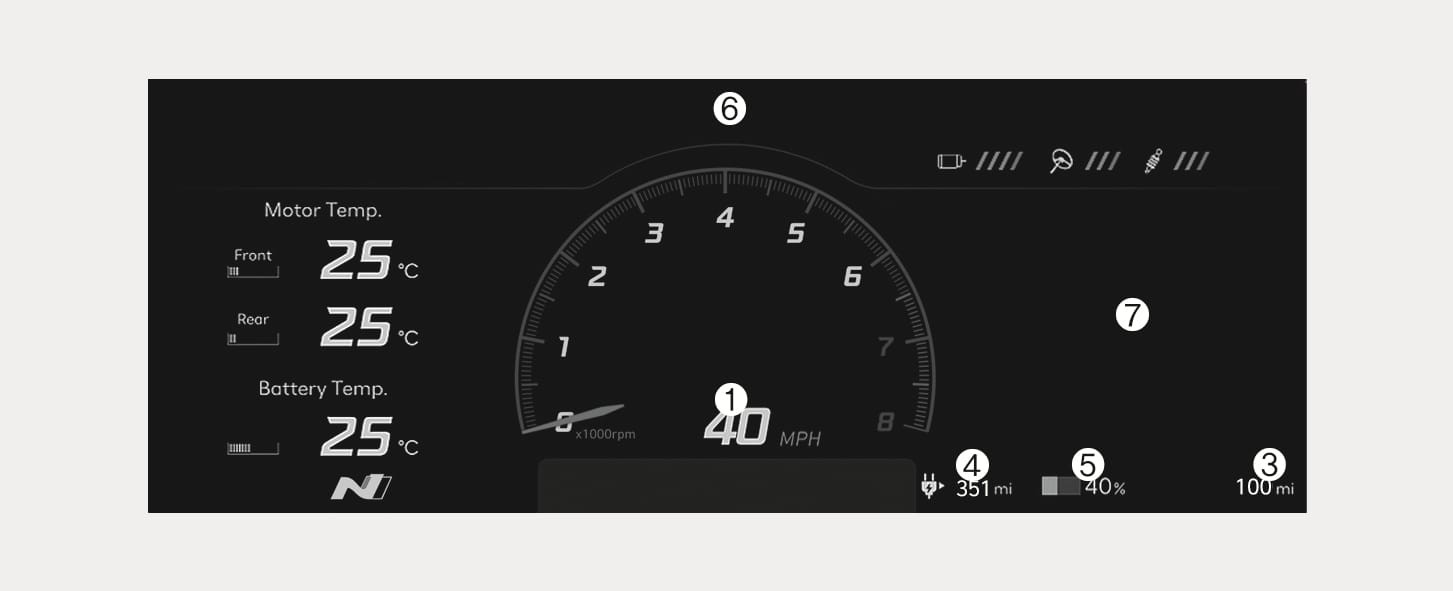

Type A (N mode)
1C_ClusterOverview_1
1C_ClusterOverview_3

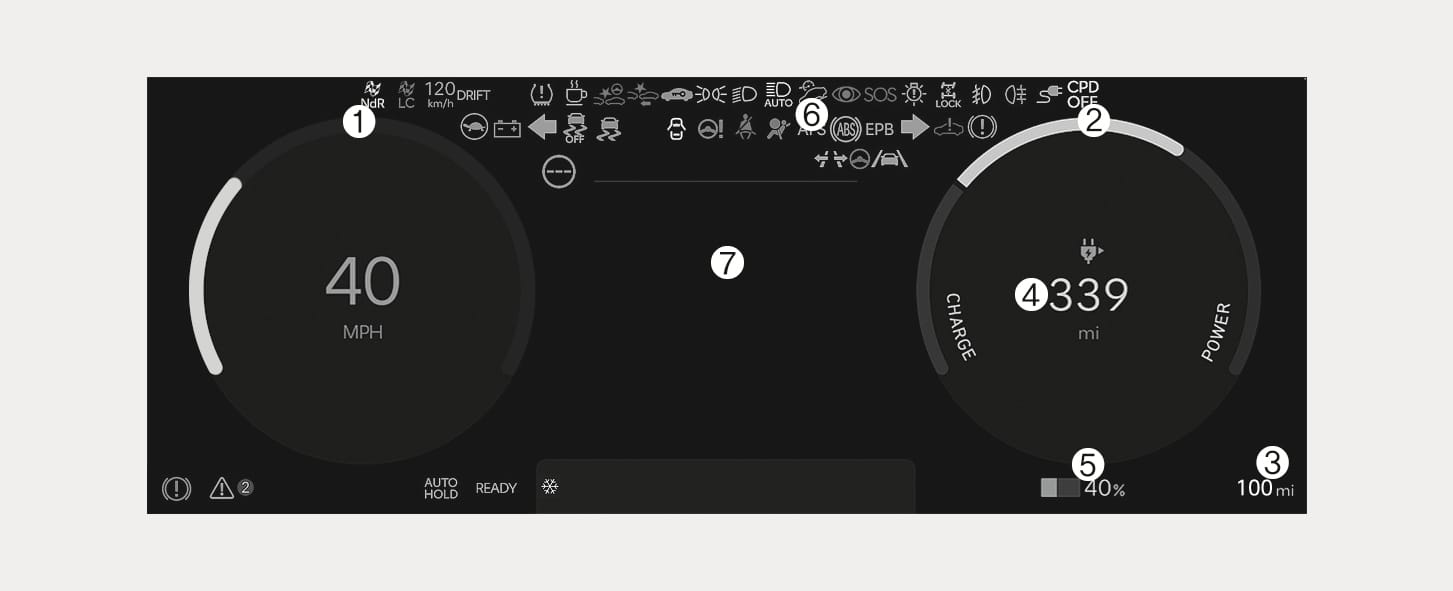

Type B (Normal mode)
1C_ClusterOverview_2
The actual cluster in the vehicle may differ from the illustration.
For more information, refer to the "Gauges and meters" section in this chapter.
- Speedometer
- Power/Charge gauge
- Odometer
- Distance to empty
- Battery SOC (State of Charge) gauge
- Warning and indicator lights
- Cluster display
