Surround View Monitor settings
2C_WarningVolumnParkingSafetySetInfo
The Warning Methods can be set with the vehicle on. Select Settings > Vehicle > Driver Assistance > Warning Methods from the settings menu in the infotainment system to change the following settings:
-
Parking safety priority: Lowers all other audio volumes when a parking assist view is active.
-
If you change the Warning methods, the Warning methods of other Driver Assistance systems may change.
-
Warning method will maintain its last setting even if the vehicle is restarted.
-
The setting menu may not be available for your vehicle depending on the vehicle features and specifications.

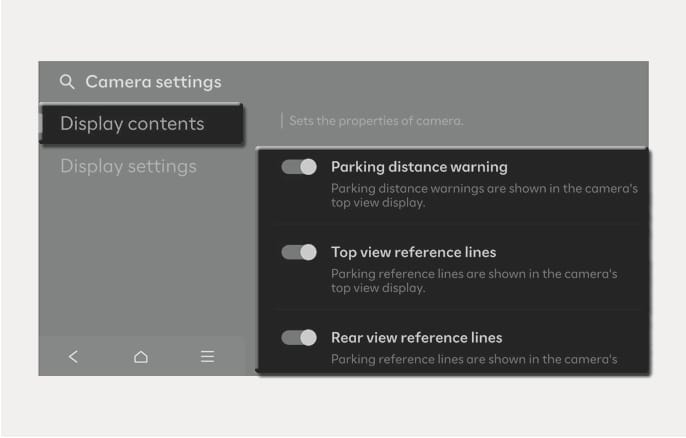

2C_SVMParkingDistanceWarningInfo
You can change Surround View Monitor Display contents by touching the setup icon (
-
In the Display contents, you can change settings for Parking distance warning, Top view reference lines and Rear view reference lines.
Parking distance warning
When the Parking distance warning is selected, parking distance warning appears on the top view area of the Surround View Monitor screen.
Top view reference lines
If Top view reference lines is selected, the parking guideline appears on the top view area of the Surround View Monitor screen when the front top view and rear top view is displayed.
The horizontal guideline of the Rear Top View Parking Guidance shows the tailgate opening distance of 2 m (79 in.) from the vehicle.
Rear view reference lines
When the Rear view reference lines is selected, parking guidance appears in the rear view.
The horizontal guideline shows the distance of 0.5 m (20 in.), 1 m (40 in.) and 2.3 m (91 in.) from the vehicle.

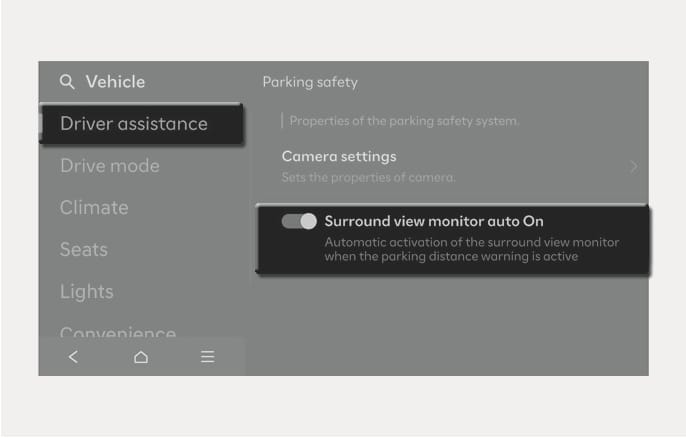

2C_SVMAutoOnInfo
With the engine on, select Driver assistance > Parking safety > Surround view monitor auto On from the Settings menu in the infotainment system to use the function.
For more information on Surround view monitor auto On, refer to Surround view monitor operation in this chapter.
