Instrument cluster

Type A

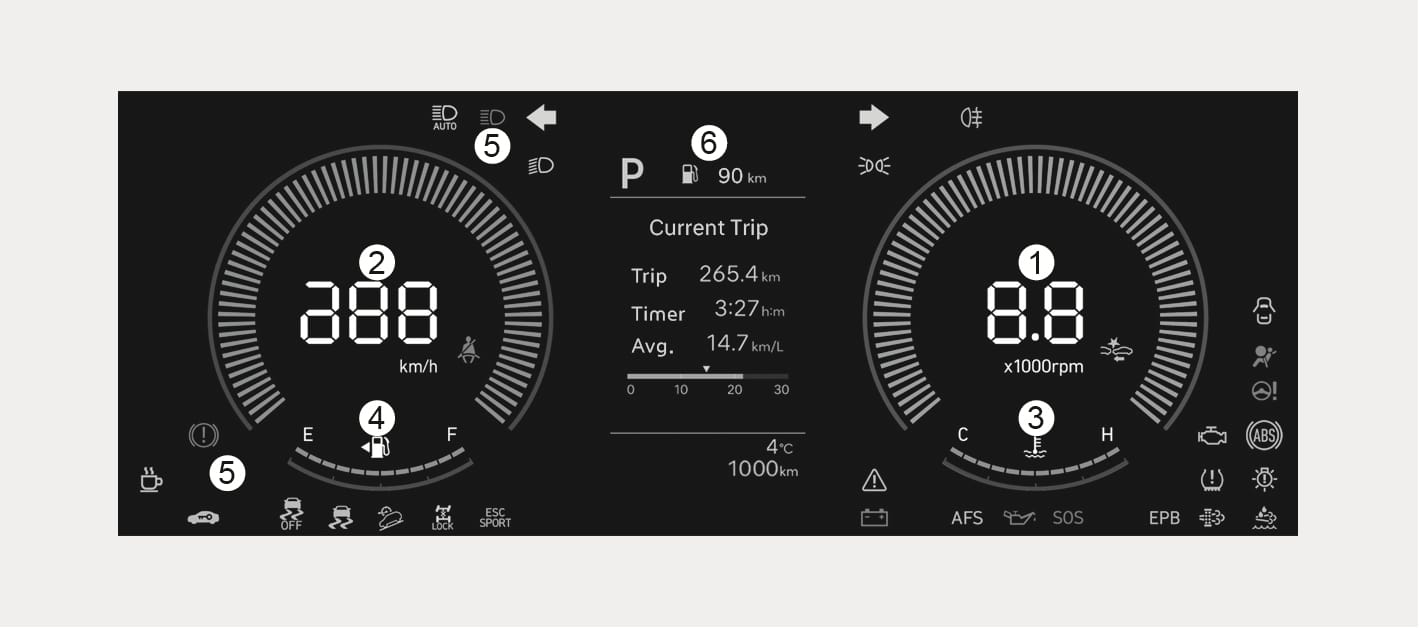

2025 Hyundai Tucson Instrument Cluster Type A image. It shows the Tachometer (1), Speedometer (2), Engine coolant temperature gauge (3), Fuel gauge (4), Warning and indicator lights (5), and Cluster display (6). Explains the arrangement of gauges and meters.

1C_ClusterOverview

Type B

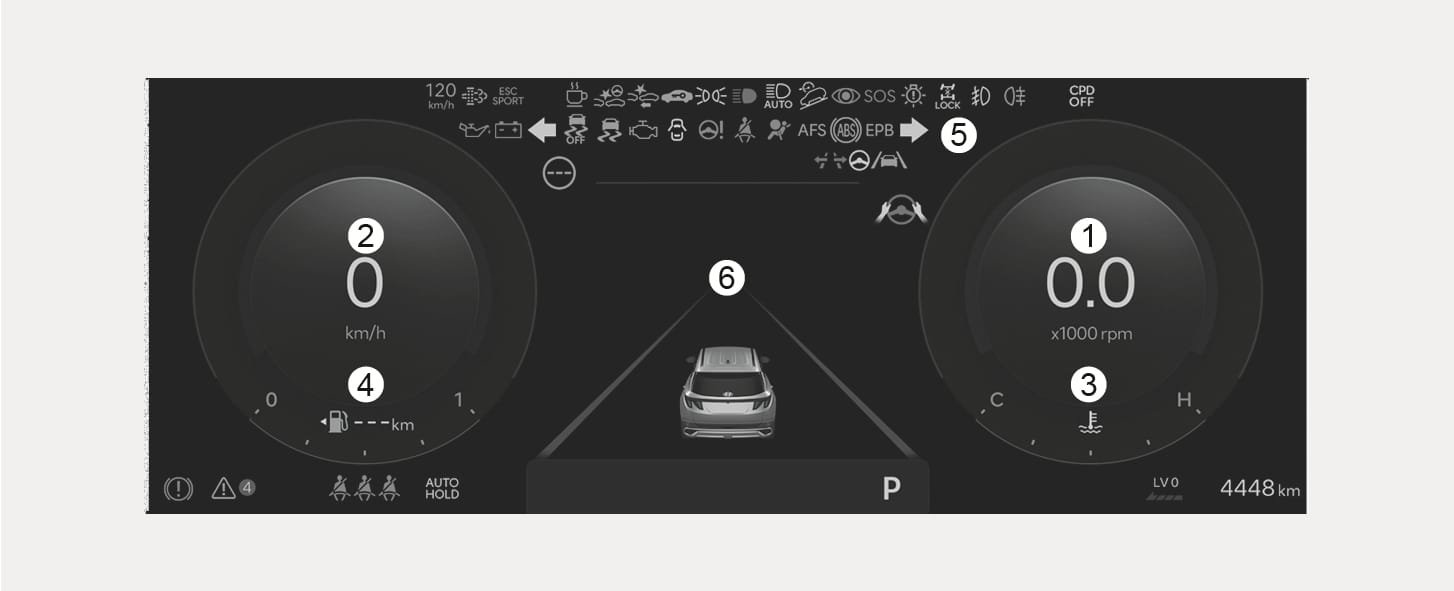

2025 Hyundai Tucson Instrument Cluster Type B image. It features the Tachometer (1) on the right and Speedometer (2) on the left. The Engine coolant temperature gauge (3) and Fuel gauge (4) are positioned below the dials. Warning and indicator lights (5) are shown at the top, with the Cluster display (6) in the center. Explains the layout of driving information and gauges.

1C_ClusterOverview_2

The actual cluster in the vehicle may differ from the illustration. For more information, refer to "Gauges and meters" section in this chapter.

  1. Tachometer
  2. Speedometer
  3. Engine coolant temperature gauge
  4. Fuel gauge
  5. Warning and indicator lights
  6. Cluster display
