To lock :

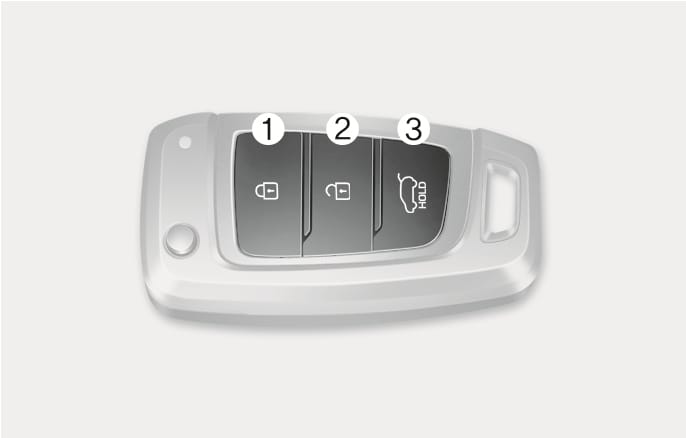

1. Close all doors, hood and tailgate.

2. Press the Door Lock button (1) on the remote key. The doors are locked. The hazard warning lights blink. Also, the outside rearview mirror folds if Setting > Vehicle > Lights > Welcome mirror/light > On door unlock is selected from the infotainment system. (if equipped)

3. Make sure the doors are locked by pulling the outside door handle.

To unlock:

1. Press the Door Unlock button (2) on the remote key.

   The doors are unlocked. The hazard warning lights blink two times. Also, the outside rearview mirror unfolds if Settings > Vehicle > Lights > Welcome mirror/light > On door unlock is selected from the infotainment system. (if equipped)

Press and hold the Tailgate Open button (3) for more than one second. The tailgate is unlocked. The hazard warning lights blink two times.

For more information, refer to the “Key ignition switch” section in chapter 6.

2C_MechanicalKey

If the remote key does not operate normally, you can lock or unlock the door by using the mechanical key.

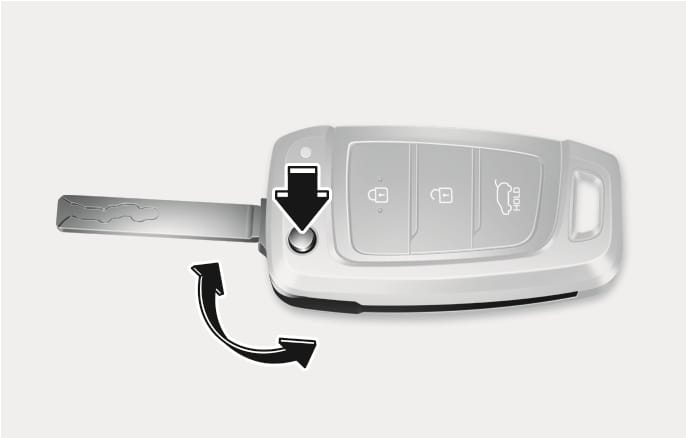

To unfold the key, press the release button. The key unfolds automatically.

To fold the key manually, press the release button.

The remote key may not work if any of the following occur:

• The key is in the ignition switch.

• The maximum operating distance limit is exceeded (about 10 m (30 ft.)).

• The remote key battery is weak.

• Other vehicles or objects may block the signals.

• The weather is extremely cold.

• The remote key is close to a radio transmitter such as radio station or airport that can interfere with normal operation of the remote key.

• Make sure the remote key battery is inserted in the correct polarity before use. Using an improperly positioned battery may cause smart key failure or premature discharge of the battery.

When the remote key does not work correctly, unlock and lock the door with the mechanical key. If you have a problem with the remote key, we recommend that you contact an authorized HYUNDAI dealer.

If the remote key is in close proximity to your mobile phone, the signals could be blocked by your mobile phone's operational signals.

This is especially important when the smartphone is active such as making and receiving calls, text messaging, and/or sending/receiving emails.

Avoid placing the remote key and your mobile phone in the same location and always try to maintain an adequate distance between the two devices.

2C_RemoteKeyBatteryReplace

Battery type: CR2032

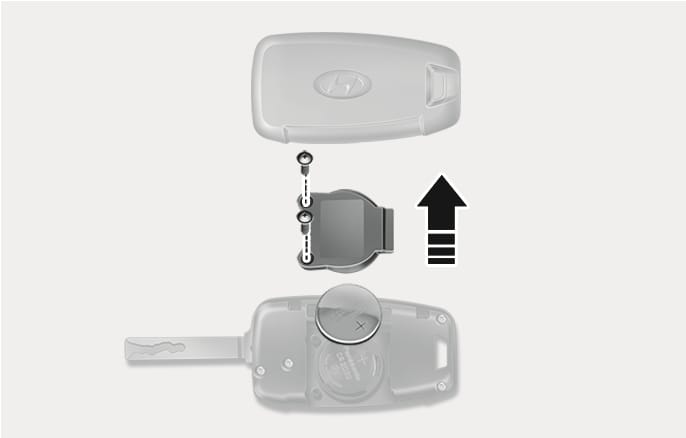

To replace the battery:

1. Insert a slim tool into the slot and gently open the cover.

2. Remove the old battery and insert the new battery. Make sure the battery position is correct.

3. Reinstall the rear cover of the remote key.

If you suspect your remote key might have sustained some damage or you feel your remote key is not working correctly, we recommend that you contact an authorized HYUNDAI dealer.

An inappropriately disposed battery may be harmful to the environment and human health. Always dispose of a used battery according to your local law(s) and regulation.
