Center console overview (Left-hand drive type)

Type A

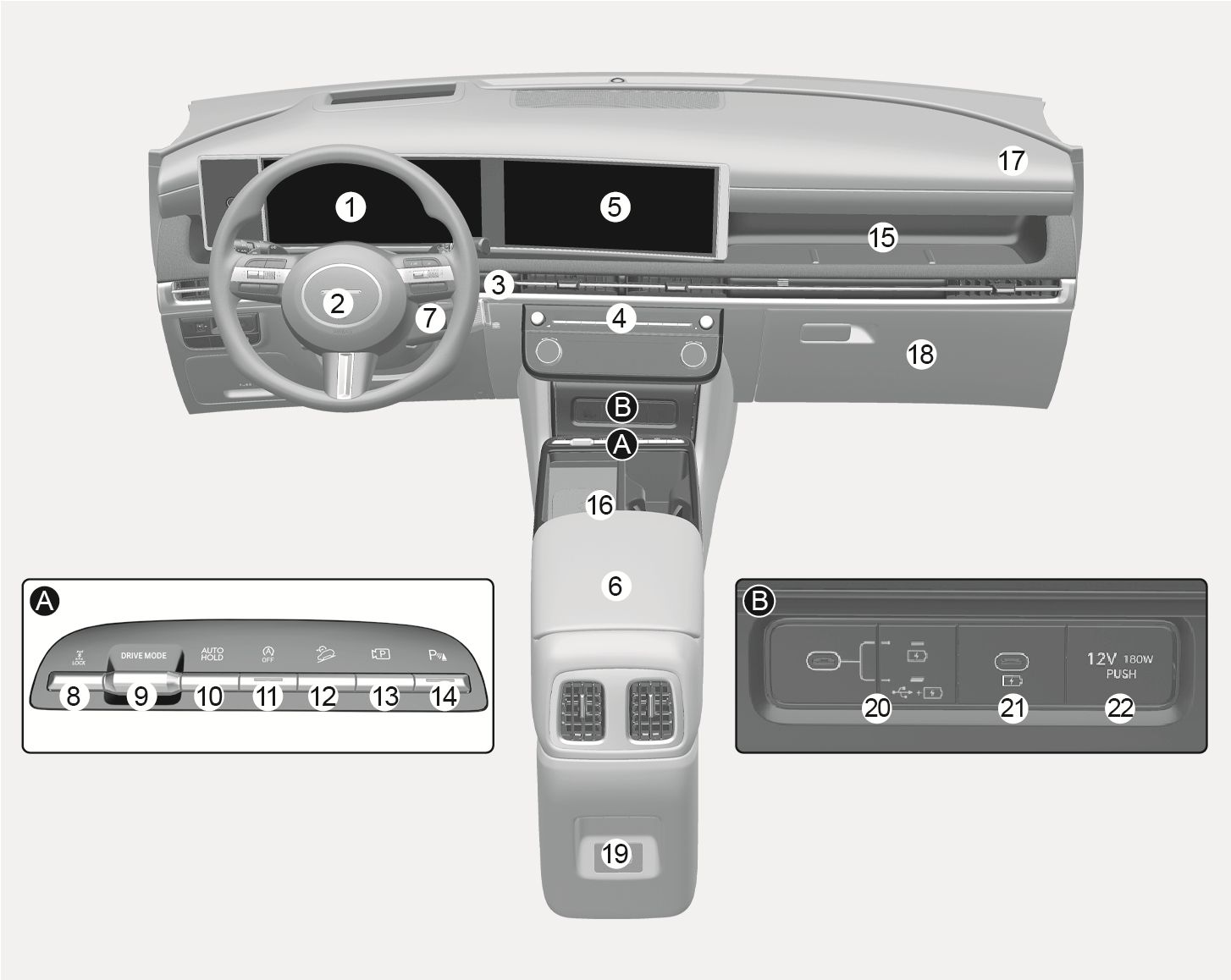

2025 Hyundai Tucson Center console overview image. Shows (1) Instrument cluster, (5) Infotainment system. Inset A details (9) DRIVE MODE, (10) Auto Hold, (11) ISG OFF buttons. Inset B shows (20) USB switch, (22) Power outlet. Explains interior controls.

1C_CenterInsideVehicleOverview

The actual shape may differ from the illustration.

  1. Instrument clusterInstrument cluster
  2. Driver's front air bagWhere are the air bags?
  3. Engine Start/Stop buttonEngine Start/Stop button
  4. Hazard warning light switchHazard warning flasher
  5. Infotainment systemInfotainment system
  6. Center console storageCenter console storage
  7. Transmission shift leverAutomatic transmission operation (Rotary gear shift dial type), Dual clutch Transmission (Rotary gear shift dial type)
  8. 4WD LOCK buttonFour Wheel Drive (4WD)
  9. DRIVE MODE buttonDrive mode integrated control system (2WD), Drive mode integrated control system (4WD)
  10. Auto Hold switchAuto hold
  11. ISG (Idle Stop and Go) OFF buttonIdle Stop and Go (ISG)
  12. DBC buttonDownhill Brake Control (DBC)
  13. Parking/View buttonRear View Monitor operation, Surround view monitor operation
  14. Parking Safety buttonForward/Reverse Parking Distance Warning operation
  15. Front passenger seat open trayFront passenger seat open tray
  16. Wireless charging system padWireless smart phone charging system
  17. Passenger's front air bagWhere are the air bags?
  18. Glove boxGlove box
  19. USB charger (rear console)USB charger
  20. USB terminal function switch buttonUSB Port
  21. USB chargerUSB charger
  22. Power outletPower outlet
Type B
2025 Hyundai Tucson Center console overview (Type B) image. The dashboard is labeled with numbers 1 to 23. Inset A shows the USB switch (20), charger (21), and power outlet (22). Inset B details the gear shift lever (7) and center console buttons, including 4WD Lock (8), Drive Mode (9), and Auto Hold (10). Explains the location of interior components and controls.

1C_CenterInsideVehicleOverview_2

The actual shape may differ from the illustration.

  1. Instrument clusterInstrument cluster
  2. Driver's front air bagWhere are the air bags?
  3. Engine Start/Stop buttonEngine Start/Stop button
  4. Hazard warning light switchHazard warning flasher
  5. Infotainment systemInfotainment system
  6. Center console storageCenter console storage
  7. Transmission shift leverAutomatic transmission operation (Rotary gear shift dial type), Dual clutch Transmission (Rotary gear shift dial type)
  8. 4WD LOCK buttonFour Wheel Drive (4WD)
  9. DRIVE MODE buttonDrive mode integrated control system (2WD)Drive mode integrated control system (4WD)
  10. Auto Hold switchAuto hold
  11. ISG (Idle Stop and Go) OFF buttonIdle Stop and Go (ISG)
  12. DBC buttonDownhill Brake Control (DBC)
  13. Parking/View buttonRear View Monitor operation, Surround view monitor operation
  14. Parking Safety buttonForward/Reverse Parking Distance Warning (PDW)
  15. Front passenger seat open trayFront passenger seat open tray
  16. Wireless charging system padWireless smart phone charging system
  17. Passenger's front air bagWhere are the air bags?
  18. Glove boxGlove box
  19. USB charger (rear console)USB charger
  20. USB terminal function switch buttonUSB Port
  21. USB chargerUSB charger
  22. Power outletPower outlet
  23. EPB (Electronic Parking Brake) switchElectronic parking brake (EPB)
